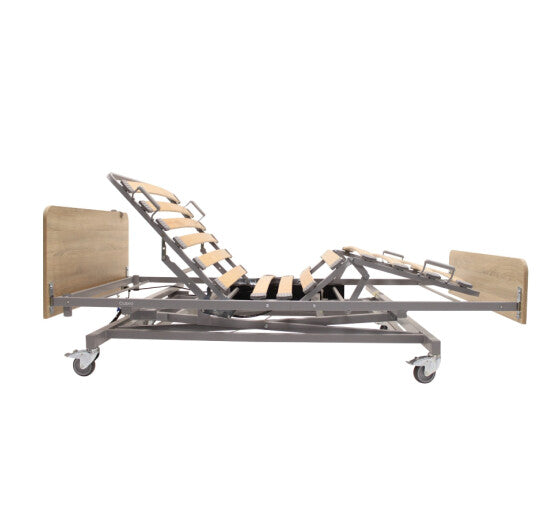

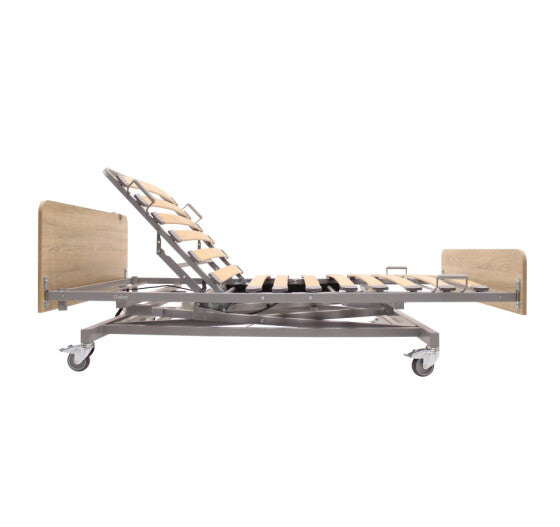

The bock® v2 is a 4-section electric bed that combines maximum comfort and ease of use. The professional design is great for daily care in the home. Ergo Plus hand controller is designed for ease of use with fully adjustable mounting clip to allow multi positioning. The integrated disabler function allows all electric functions to be disabled with a simple hand controller lock.

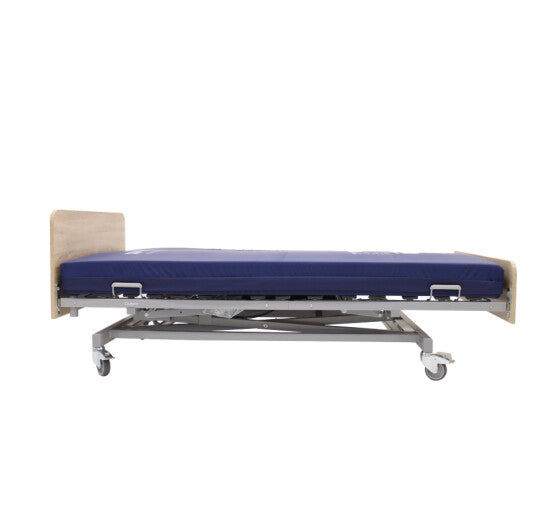

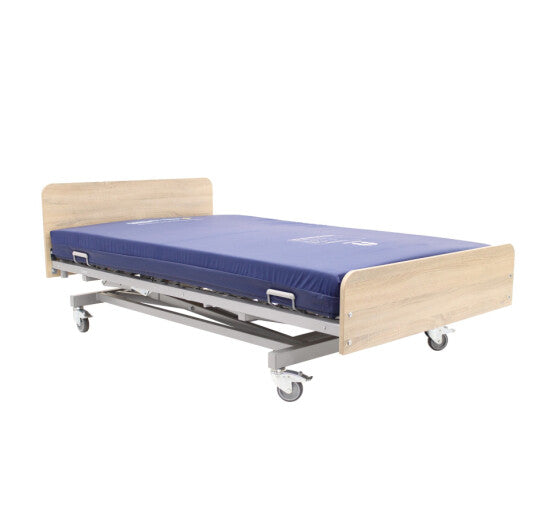

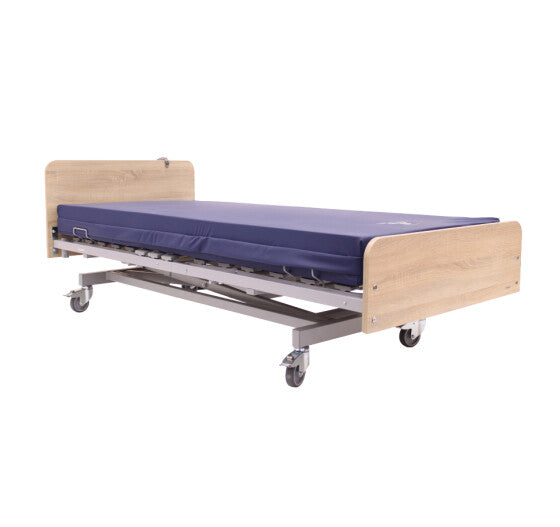

Including high quality Sonoma Oak head and endboards, the single bed is sold with the Greenline Hyper-Foram mattress, and the super single bed is sold with the Posture-Temp™ mattress.

• Sonoma oak finish
• Includes 4-section electric bed and mattress

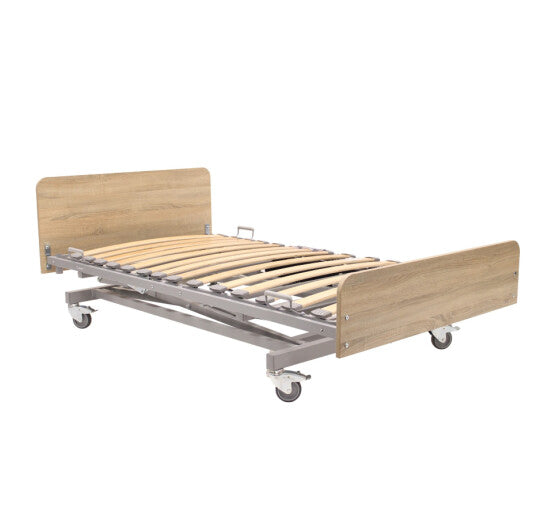

• Sprung slat base for pressure care and ventilation
• Mains isolation prevents the generation of electric fields

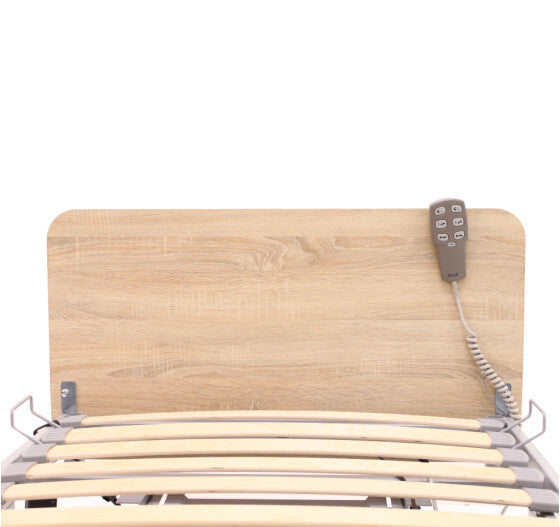

• Tough, scratch-resistant prime melamine surface on the endboards

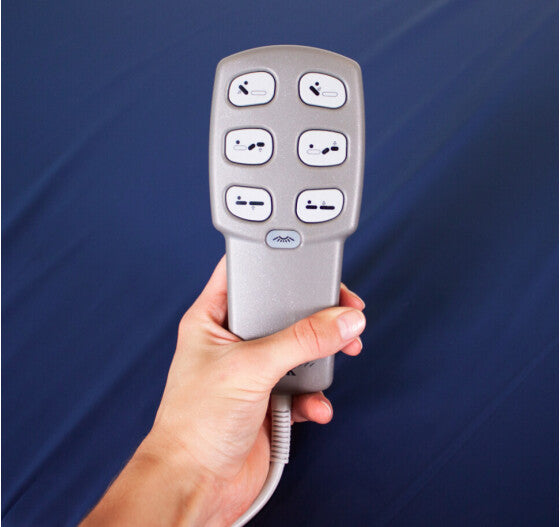

• All function hand controller with integrated disabler control and adjustable rail clamp
• High grade coiled cable with strain relief and anti-kink feature to protect against cable damage
• Battery for emergency lowering
• Protection against moisture (IPX4)

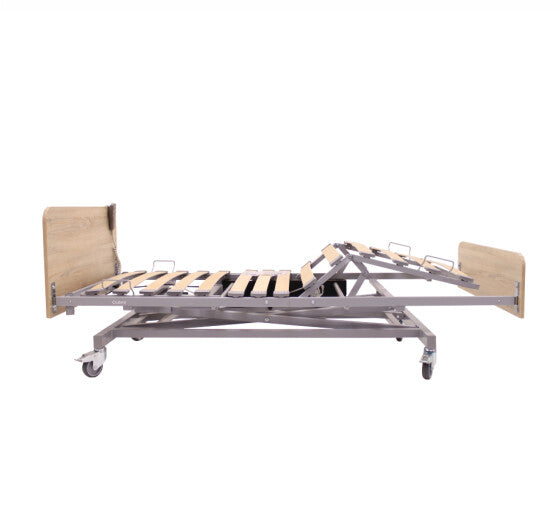

• Automatic triple action kneebreak and height adjustment
• ISO 14971 Meets German Federal Inst. for Pharmaceuticals and Medical Products Standards (BfArM)

Code(s)	8650	8600
Option	Posture-temp mattress/super single	Greenline Hyper Foam mattress/single
Safe working load	200kg	200kg
Max. user weight	165kg	165kg
Overall dimensions	W 1220mm L 2160mm	W 915mm L 2160mm
Clearance height	150mm	150mm

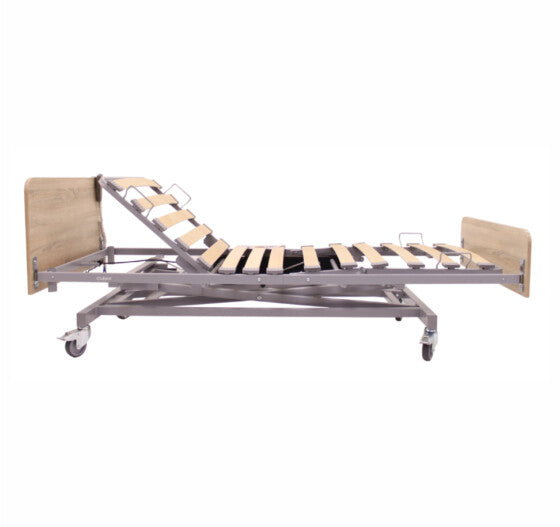

Backrest angle adjustment	70°	70°
Knee angle adjustment	35°	35°
Castor size	4x 100mm	4x 100mm
Mattress dimensions	W 1100mm L 2000mm H 150mm	W 880mm L 1960mm H 150mm

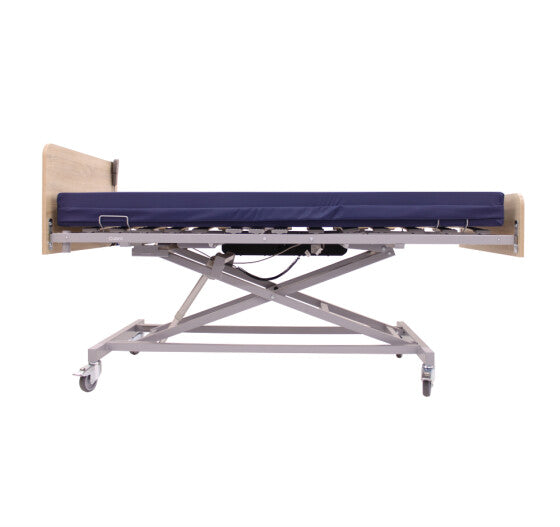

Mattress platform	370 - 830mm	370 - 830mm
Braking	Individual braking	Individual braking
Warranty	Electronics: 2 years, Frame: 5 years	Electronics: 2 years, Frame: 5 years
