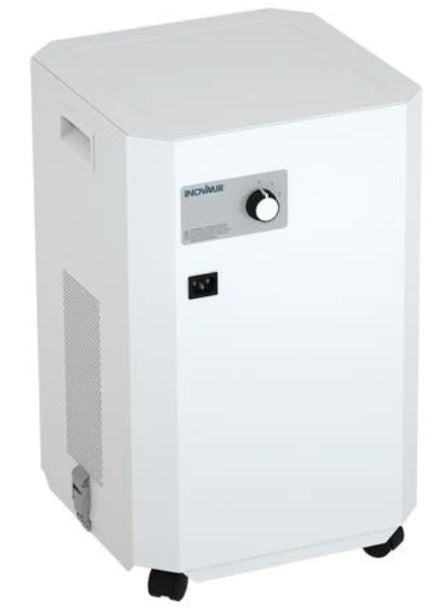

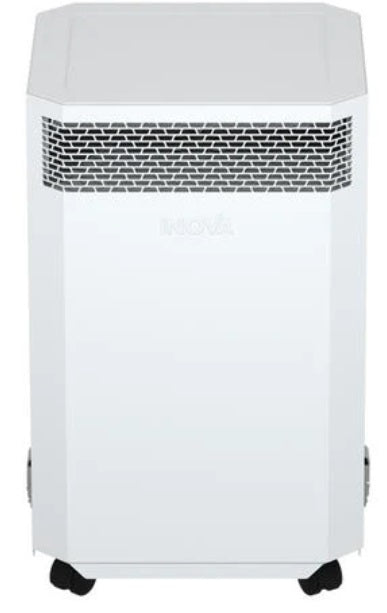

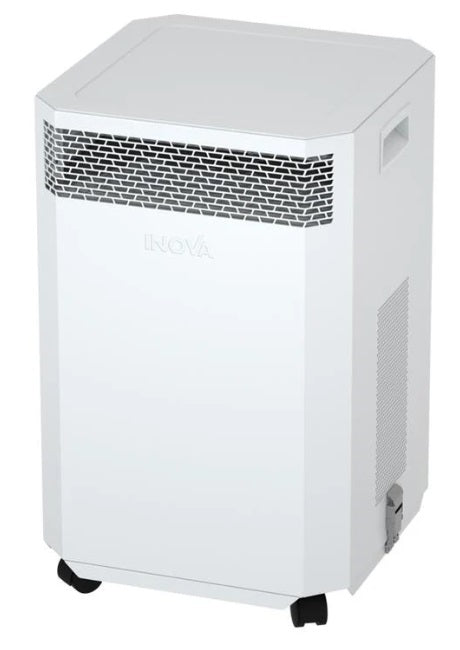

Effective in areas up to 25m2, the InovaAir V9 has been designed for use in clinical environments, primarily for the removal of aerosol-based viral and bacterial contaminants.
Each system is individually certified using a calibrated, Met One, ISO compliant laser particle counter to meet or exceed the stated efficiency.
Advantages
- Technostat high-efficiency pre-filter.
- High capacity cylindrical H13 certified medical-grade HEPA filter with 3.8m2. surface area and metal casing.
- 100% Airtight filter seals
- High-Flow air diffuser with silencer for ultra-quiet operation on low fan speeds
- Plastic-free, chemical-free aluminium powder coated construction allows for easy wipe-down and disinfection of external surfaces with any ethanol-based alcohol cleaning agent.
- Portability, easily moved from room to room on wheels
- 100% Ozone free.
- Australian made, ensuring quick and reliable support and filter replenishment
V9 HIGH EFFICIENCY 2 STAGE FILTER
The V9 two-stage filter provides the highest level of filtration and airflow available resulting in lower energy consumption, longer filter life and a lower cost of ownership.
Both filters are included with the initial system purchase.
What do our Air Purifiers remove from the air?
STAGE 1 Technostat high-efficiency pre-filter
The Technostat pre-filter is the first stage of the AirClean V9 Air Purifier.
Technostat is a tribo-electret media and has unique charged characteristics which allow the filtration of sub-micron particle sizes including bacteria and viruses.
Technostat is used in many medical applications which demand some of the highest levels of filtration since they are often used in life-support and human ventilation machines.*
- BFE Efficiency > 99.9992%
- VFE Efficiency > 99.9970%
*Tested in accordance to Spec MIL-M-36954C By Nelson Labs
The pre-filter captures ultra-fine sub-micron particles including; dust, bacteria & viruses before they reach the main H13 HEPA filter, enhancing filtration efficiency and extending the life of the HEPA.
STAGE 2 H13 Medical-grade HEPA filter
With an incredible 3.8m surface area. The HEPA filter in the V9 provides the highest level of filtration available. Certified at 99.97% @ 0.3 microns - tested down to 0.003 microns at 100% efficiency*. The HEPA filter removes viruses, bacteria, mould spores, allergens, pollen and dust mites.
FILTER CONSTRUCTION & SEALS
Filter endcaps are manufactured from steel, with steel mesh outer and inner casings to protect the HEPA paper and avoid damage during handling.
There are only 2 sealing faces on the filter (top & base) which are sealed using Poron gaskets to ensure no unfiltered air can pass through the system.
System Specifications
|
Airflow
|
Air delivery up to 350m3/hour.
Recommended coverage area 25m2
|
|
Dimensions
|
W:32cm x D:32cm x H:52cm.
|
|
Weight
|
9.5 kg
|
|
Country of Manufacture
|
Australia.
|
|
Construction
|
Powder-coated 1mm, 5052 Grade Aluminium.
|
|
Power consumption
|
10-58 Watts.
|
|
Motor type
|
AC Centrifugal Fan (European), designed for continuous 24-hour operation.
|
|
Speed control
|
4-speed selectable.
|
| Sound rating |
35-60 dBA
Airflow noise only. High-quality, near-silent German-made fan. |
|
Pre-Filter
|
Technostat electrostatically charged high-efficiency pre-filter.
Filter life: Up to 6 months continuous use**
|
|
HEPA Filter
|
H13 Medical-grade. 3.8m surface area.
Filter life: 3 - 5 years continuous use**
|
|
Activated Carbon Filter
|
Not included in this model
(not required for COVID aerosols)
For 2.4 kg Activated Carbon version, please see AirClean E8
|
|
Warranty
|
5 years (parts and labour)***
|
|
|
|

* Tested by LMS Technologies Inc (EN1822)
** Filter life will vary depending on dust & chemical concentrations present. As operating conditions vary based on levels of dust, chemicals & odours present, and system proximity to major pollution sources.
*** InovaAir does not warranty consumable filter life.
Formally known as the E9, we have recently changed the naming convention on this series of systems to be more in line with their virus risk reduction functionality.
